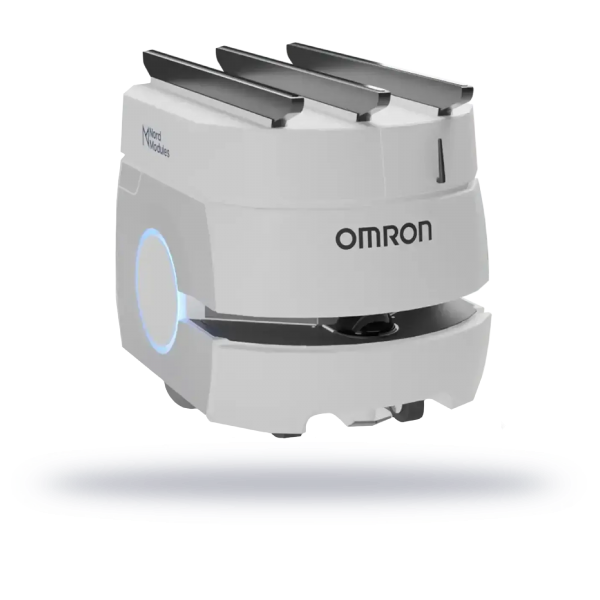

Nord QM35/65-Omron

The NORD Quick Mover is capable of transporting goods to and from The Nord Modules Gates.

The top module is mounted on top of the mobile robot and functions by a lifting mechanism integrated into the module.



Robot compatibility:
Omron LD60 & Omron LD90

Categories: , , Tag: Product ID: 22265
Tag: Product ID: 22265

Description

The NORD Quick Mover is capable of transporting goods to and from The Nord Modules Gates.



The top module is mounted on top of the mobile robot and functions by a lifting mechanism integrated into the module.



Your key benefits:



  • Simple setup and installation – can be up and running within a few hours, thereby providing a complete and flexible solution with the gate modules.
  • Flexible standard product designed to simply adjust to specialized work processes which form efficient automation of internal transportation.
  • Reliable and cost-efficient – The Quick Mover reduces costs and increases productivity.

Specifications

Robot compatibility:
Omron LD60 & Omron LD90

Nord Modules compatibility:
Basic Gate & Wheel Gate

Dimensions (LWH):
644 x 470 x 170/230 mm | 25.35 x 18.5 x 6.7/9″

Handling capacity:
LD60: 35 kg | 77.2 lbs
LD90: 65 kg | 143.3 lbs

Lifting capacity:
60mm | 2.3 lbs

Center distance between slats:
140 mm | 5.5″

Transport area:
644 x 470 mm | 25.4 x 18.5″

Weight:
25 kg
